Single-Note Bill Dispenser
Two Coin Hoppers
Standard’s BCX – Bill-and-Coin Exchanger – Series machines are designed to be “Automated Attendants”, providing a combination of bill change AND coin change. For example, our default pay-out allows a customer to insert a $20 bill, and the machine dispenses (20) Quarters and (3) $5 bills. Excellent locations for Bill-and-Coin Exchanger machines are attended or unattended coin laundries, card laundries, car washes, museums, zoos and aquariums, paid parking lots; anywhere that would allow more customer convenience by breaking higher denomination bills into smaller denomination bills and coins that can be used in your business services. Why make your customers break their $20 bills into pockets full of quarters only?

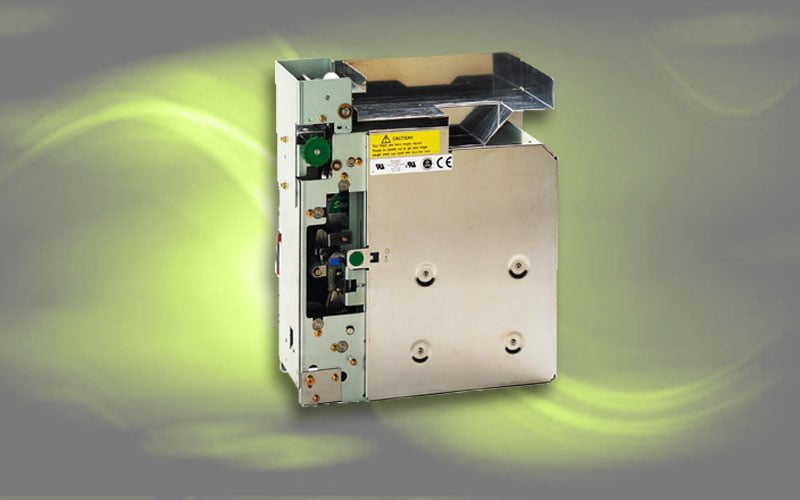

The BCX2010 features the Fujitsu F50 – Single-Note Bill Dispenser in a front load cabinet style. This dispenser allows the owner to load the bills vertically, directly into the dispenser. The BCX2010 is programmed to dispense the pay-out you specify using our EF+ Module. If you wish to have a more sophisticated pay-out, you can change it in the field with the EF+ Modulee.
BCX2010 Change Machine Features:
- Front Load configuration for Bill-and-Coin Exchange
- (1) MEI (Mars) Bill Acceptor – accepts $1 – $20 Bills – with 500 Bills Stacker
(Coinco Vantage, Pyramid APEX and Cashcode Currenza available)
- (1) Single-Note Fujitsu F50 Bill Dispenser – holds from 750 (used) to 1,000 (new) Bills
- (2) Steel, Modular Series Coin Hoppers – holds up to 6,400 Quarters ($1,600 capacity)
- Includes EF+ Module – with Remote Notification Feature
- Heavy gauge steel cabinets with solid-welded seams (no rivets or spot welds)
- High gloss, powder-coat enamel paint finish with applied Lexan graphics decal
- (2) T-handle Locks with Ace Lock Plugs
- One Year Warranty on Fujitsu Bill Dispenser unit
- Two Year Limited Warranty
| SPECIFICATIONS: | |
|---|---|
| ACCEPTS: | $1 | $5 | $10 | $20 |
| DISPENSES: | One Denomination of Bills;
& One or Two Denominations of Coins |
| BILLS CAPACITY: | Bills: 750 (Used) – 1,000 (New) Bills |
| COINS CAPACITY: | 6,400 Quarters ($1,600) |
| DIMENSIONS: | 38″H x 18″W x 18″D |
| SHIP WEIGHT: | 216 lbs. |
Optional features
| DESCRIPTION: | |
|---|---|
| MEI (Mars) Bill Acceptor for $1 – $100(US) | Cashcode Currenza Bill Acceptor for $5 -$100(CAN) |
| MEI (Mars) 700 Bills Stacker Upgrade (US only) | MEI (Mars) 1,000 Bills Stacker Upgrade (US only) |
| Vending Base (22″H x 18″W x 18″D) | Vending Header (12″H x 18″W x 18″D) |
| Alarm Kit (with Vibration Detection) | Electronic Coin Acceptor Kit |
| (1) Non-Resettable Bills/Coins Counter Kit | (2) Non-Resettable Bills/Coins Counter Kit |
| (1) Resettable Bills/Coins Counter Kit | (2) Resettable Bills/Coins Counter Kit |
| Locking Coin Hopper Lids | Portable Audit Printer Kit |
| Transcient Surge Suppressor | Medeco Lock Plug Upgrade for T-Handle Lock |
| “Sold Out” Filler Plate for Fujitsu Dispensers | Crank Locks with Medeco Lock Plugs Upgrade |
| Custom Lexan Decal |
